192A.20CPE
200mm High Performance Diagonal Cutter
Facom 192A20CPE diagonal cutting pliers with black and red ergonomic handles, side angle, white background.
Facom 192A_18CPE precision knife with a black ergonomic handle and sharp angled blade, front view on white background.

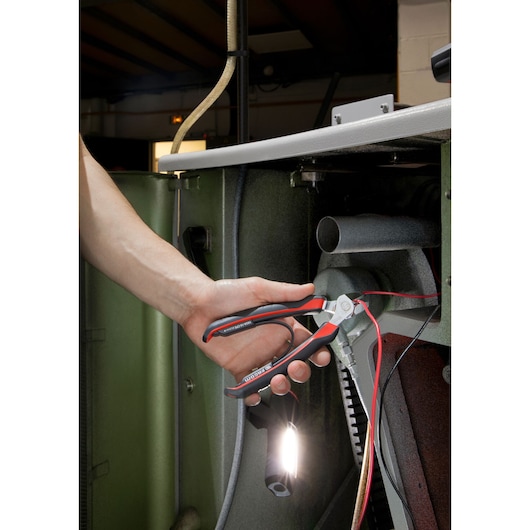

Facom 192A20CPE diagonal cutting pliers with black and red handle cutting wires during electrical repair.

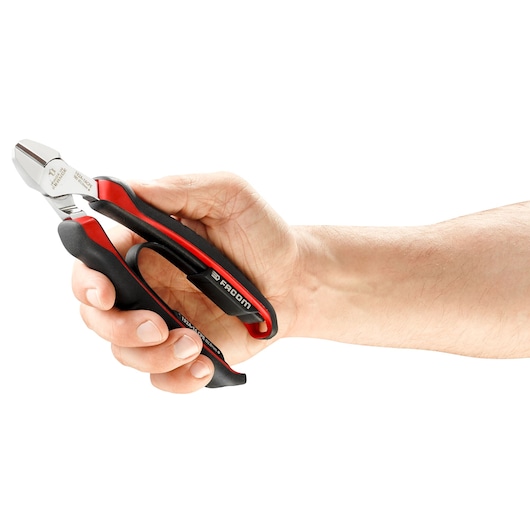

Facom 192A_18CPE diagonal cutting pliers with black and red handles held in a hand, side angle.

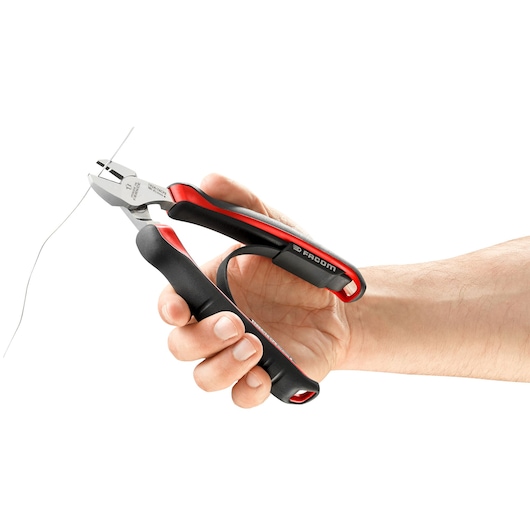

Photo of Facom 192A_18CPE side cutting pliers with black and red handles in use, cutting wire, close-up.

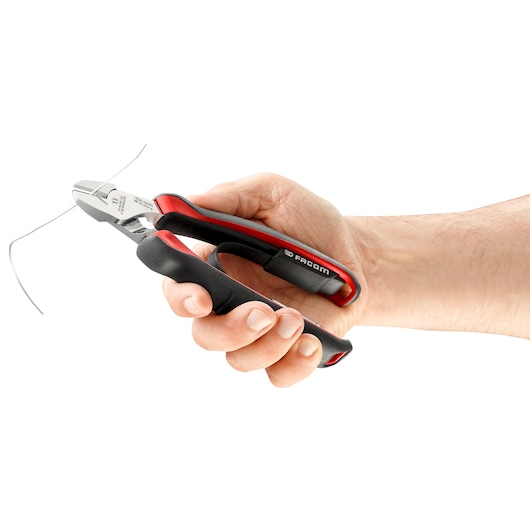

Photo of Facom 192A_18CPE diagonal cutting pliers with black and red grip cutting wire, held in a hand.
192A.20CPE

200mm High Performance Diagonal Cutter

  • New head design to increase durability and cutting capacity
  • Cutting edges designed to cleanly cut all types of wire: soft wires and modern materials to a maximum piano wire specification of: - 192A.16CPE : 2.0mm 210 kg/mm² - 192A.18CPE : 2.2mm 205 kg/mm² - 192A.20CPE : 2.5mm 200 kg/mm²
  • High Mechanical advantage due to off-set rivet and cutting edge geometry reducing effort
View more features

Product Overview

The High-Performance Diagonal Cutters - 192A.20CPE are designed for a long-life performance due to the chrome plating in the head and bi-material in the grips that resists corrosion and workshops chemicals. The soft and ergonomic grip has been designed to provide comfort with less effort when cutting.

Additional Features

  • High durability Carbon alloy steel, with induction hardened cutting edges
  • Bi-Material ergonomic grips resistant to chemical agents featuring: - Return spring - Tether ready point (Tether point adds 10mm to nominal length)
  • Chrome finish for corrosion resistance
  • length 200 mm

Specifications

Grip Type
Bi-Material
Is it a Set?
No
Is Tether Ready?
Yes
Materials Suitable for Cutting
Metal
Product Height [mm]
22
Product Length [mm]
200
Product Weight [Kg]
0.32
Product Width [mm]
28
Solid Joint Pliers Product Type
Diagonal Cutting Pliers
Standards / Norms
ASME B107.500, DIN ISO 5749, ISO 5749, NF ISO 5749
Wire Stripping Capacity [mm]
11.5
