DL.1000
1T Transmission Jack
Facom DL1000 transmission jack with red and black frame, adjustable top plate, safety chains, and caster wheels, front view.

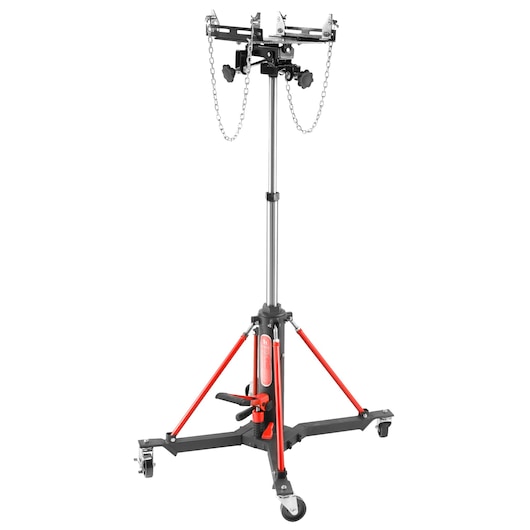

Facom DL1000 hydraulic transmission jack on wheels, upright angle, with chains and red support arms.

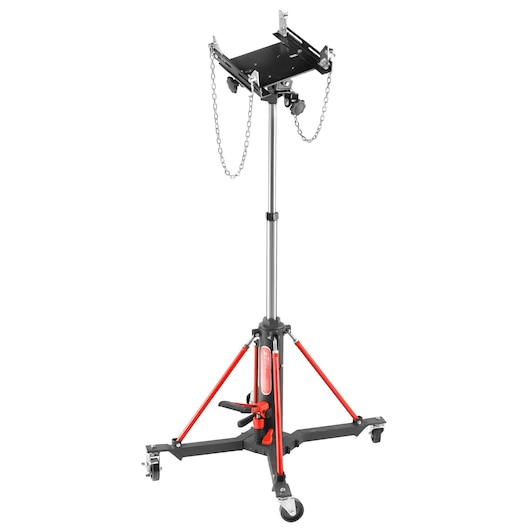

Facom DL1000 transmission jack with adjustable platform, safety chains, red and black frame, side angle, white background.

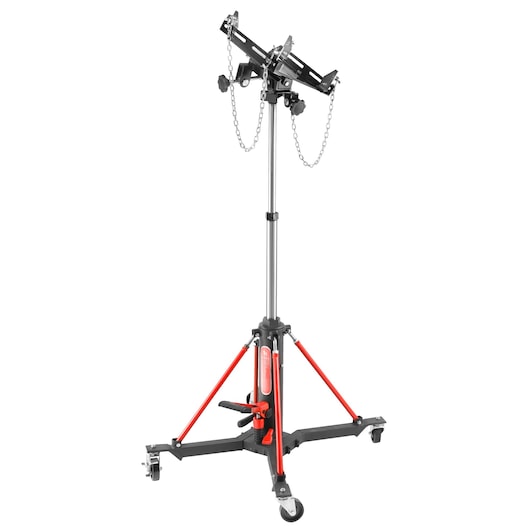

Facom DL1000 transmission jack with adjustable support, safety chains, and red legs, front angle on white.

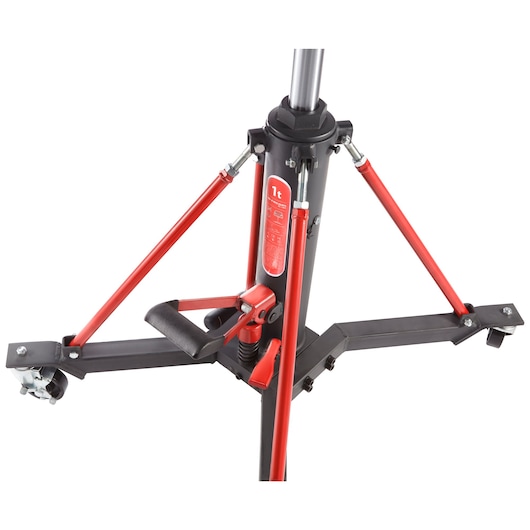

Facom DL1000 tripod hydraulic jack base with red support arms and foot pedal, front angle, white background.

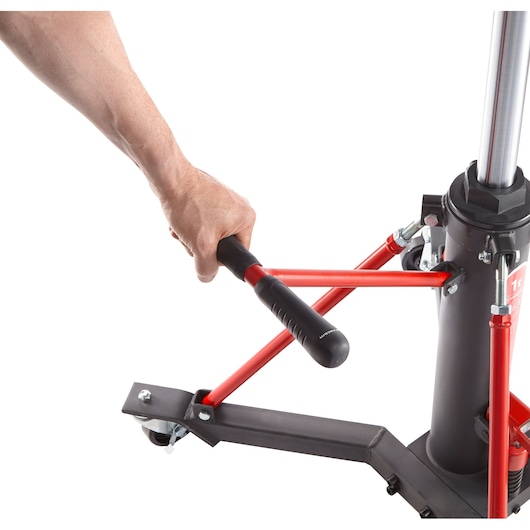

Facom DL1000 hydraulic jack with red handle and black base, side angle, hand operating handle.
DL.1000

1T Transmission Jack

  • Max load 1 ton.
  • Adjustable height: -Minimum 895 mm -Maximum 1820 mm
  • Footprint (L. x W.): 790 x 945 mm.
View more features

Additional Features

  • Castors including 2 with brakes.
  • Head tilts in two axes with adjustment wheels and safety chains.
  • Foot control: rising, lowering.
  • Easy movement with the handling grip.
  • CE compliance Standard EN1494+A1

Specifications

Function Type
Hydraulic
Has CE Mark?
Yes
Has Overload Valve?
No
Is EC Compliant?
No
Is For HGVs?
Yes
Is it a Set?
No
Material
Aluminum
Number Of Pieces
1
Number of Wheels
3
Product Height [mm]
899
Product Length [mm]
790
Product Weight [Kg]
80
Product Width [mm]
945
Standards / Norms
EN1494+A1
Wheel Material
Stainless Steel Wheels

Support

Warranty

  • 2 Year Guarantee*

If this product becomes defective due to faulty materials or workmanship within 2 years from the date of purchase, we guarantee to repair or replace it free of charge.

*Terms & conditions apply.
