DL.PL5
5T Rolling Jack
Photo of Facom DLPL5 hydraulic floor jack, red and black, side angle on white background.

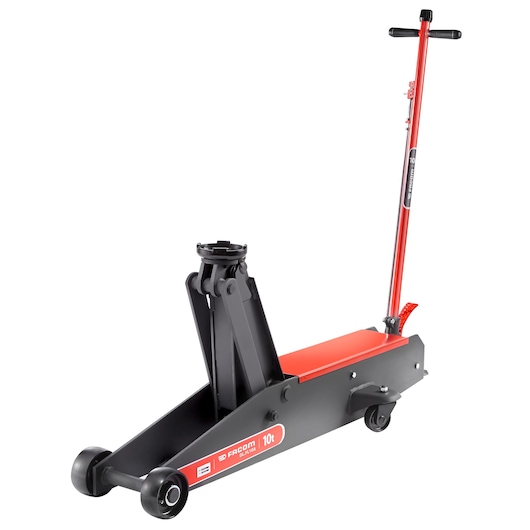

Facom DLPL5 floor jack with red handle and black body, side angle on white background, 10-ton capacity label.
Facom DLPL5 low-profile hydraulic floor jack with extended red handle, side angle, on white background.

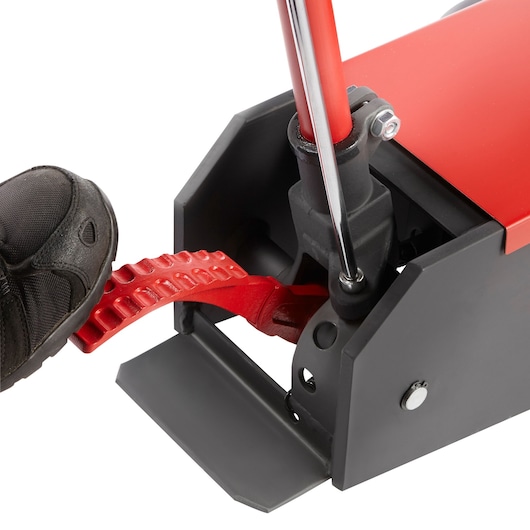

Facom DLPL5 hydraulic jack close-up with black shoe pressing red foot pedal, side angle on white background.
DL.PL5

5T Rolling Jack

  • Load capacity: 5 t.
  • Maximum lifting height: 685 mm
  • Minimum height under body: 150 mm.
View more features

Additional Features

  • Fast foot lifting.
  • Handle adjustable in 3 positions 90, 135, 180 degrees.
  • Overload valve.
  • CE Compliance Standard EN1494+A1.

Specifications

Function Type
Hydraulic
Has CE Mark?
Yes
Is EC Compliant?
No
Is For HGVs?
Yes
Is it a Set?
No
Material
Steel
Number Of Pieces
1
Number of Wheels
4
Product Diameter [mm]
685
Product Height [mm]
200
Product Length [mm]
1506
Product Weight [Kg]
89
Product Width [mm]
150
Standards / Norms
EN 1494, EN1494+A1, MSD 2006/42/CE
Wheel Material
Stainless Steel Wheels

Support

Warranty

  • 2 Year Guarantee*

If this product becomes defective due to faulty materials or workmanship within 2 years from the date of purchase, we guarantee to repair or replace it free of charge.

*Terms & conditions apply.

Learn More

Service

With a century-long legacy of excellence and a touch of French sophistication our Service & Support team is here to assist you with any questions or concerns you may have.

Support Manual
