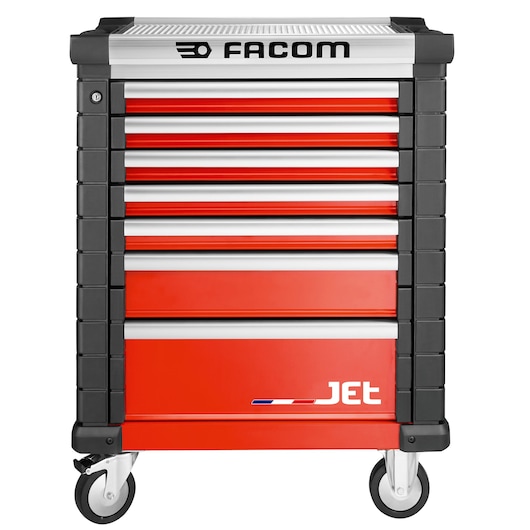

Facom JET.7M3A red and black tool chest with seven drawers on wheels, front angle, photography.

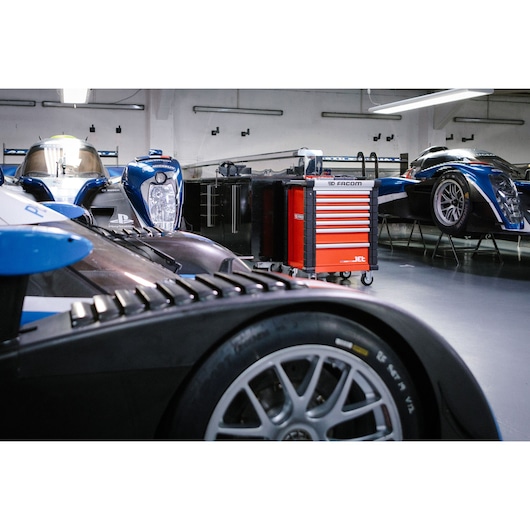

A red Facom JET.7M3A tool cabinet with multiple drawers is positioned in a professional garage, surrounded by blue racing cars on stands and a clean workshop environment.
A mechanic works on a racing car in a garage, with two red and black Facom tool cabinets visible nearby. The mechanic is wearing a navy blue and red uniform. The garage environment is well-lit, and the car appears to be under repair or maintenance.
A person standing next to a red Facom tool cabinet with multiple drawers in a garage or workshop environment, surrounded by sports cars. The person's face is blurred.
A Facom JET.7M3A tool chest with drawers is shown in the foreground, with various tools displayed on top. A person wearing a navy and red polo shirt stands beside it with arms crossed. In the background, there is a partially assembled race car in a garage or workshop setting.
JET.7M3A

Roller Cabinet, 7 Drawers, L 569 x H 421 mm, 3 Modules Per Drawer, 0,28 m² Top

  • 7 drawer roller cabinet = 18 modules in 60 and 130 mm drawers
  • Total storage capacity: 155 litres
  • Usable drawer dimensions: L 569 x D 421 x H 60/130/200 mm
View more features

Additional Features

  • Supplied with 2 JET2.15 partitions for 60mm drawers and 2 JET2.16 partitions for 130mm drawers
  • Additional partitions can be purchased as an option if required
  • Worktop: Extra large work surface, usable area 605 x 461 mm, 0.28 m². +25% vs JET
  • High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 900 kg
  • Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
  • Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system
  • The installation of accessories is fast and secure
  • A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation
  • 5 drawers height 60 mm = 15 modules
  • Dedicated slots for 8 screwdrivers
  • Integrated ledges prevent tools from falling out while moving
  • Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion
  • The high-quality self-closing system ensures closure and increases safety
  • Central locking system with key lock, supplied with 2 keys, 1 of which is hinged
  • Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect
  • Manoeuvrability: Low starting effort, long life, high resistance to heavy loads
  • 4 wheels diameter 125 mm, 2 fixed and 2 swivel, each equipped with a brake for more stability when working at a standstill
  • The trolley is delivered with the wheels already mounted
  • Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated
  • 1 drawer height 130 mm = 3 modules
  • Top chest available as optional unit for added volume and flexibility
  • Warranty: The FACOM JET series is manufactured in France to the highest specifications and standards
  • Each model is carefully tested to evaluate and validate its performance and comes with a five year warranty
  • The drawers are tested over 50,000 opening/closing cycles, i.e. 10 years of use
  • 1 drawer height 200 mm
  • The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system
  • 200 mm drawers can also be fitted with modules
  • Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 20/25/35 kg
  • The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use
  • Total load capacity of the drawers: 155 kg

Specifications

Body Metal Thickness [mm]
1
Can Additional Top Chest be Added?
No
Can Worksurface Receive Accessories?
No
Can Worksurface Receive a Vice?
No
Do Drawers Fully Open?
Yes
Drawer Capacity [Kg]
155
Drawer Depth [mm]
421
Drawer Length [mm]
569
Drawers Metal Thickness [mm]
1
Drawers Total Weight Capacity [Kg]
155
Has 360° Rotation Capacity?
Yes
Has Anti-tip System? (One Drawer at a Time)
No
Has Bumper Effect?
Yes
Has Drawer Mat?
No
Has Drawer Separators?
Yes
Has Possibility of Accessorization?
No
Has Secure Closing System - Safety Hook?
Yes
Has Self-Closing Slides?
No
Has Tilting Handle?
No
Has Wheels with Brake?
Yes
Has Worktop with Integrated Handles?
Yes
Is it a Set?
No
Locking System
Central
Material of Box Corner Protectors
Soft Plastic
Material of Drawer Corner Protectors
Soft Plastic
Max. Worktop Load [Kg]
900
Number of Drawers
7
Number of Fixed Wheels with Brake
1
Number of Fixed Wheels without Brake
1
Number of Handles
1
Number of Swiveling Wheels without Brake
1
Number of Wheels
4
Product Handle Type
Plastic
Product Height [mm]
971
Product Length [mm]
774
Product Weight [Kg]
77.5
Slides Material
Metal
Static Overall Weight Capacity [Kg]
900
Surface Treatment
Plasticized
Type of Lock
Key
Type of Side Handle
Plastic
Wheel Diameter [mm]
125
Worktop Material
Others

Support

Warranty

  • 5 Year Guarantee*

If this product becomes defective due to faulty materials or workmanship within 5 years from the date of purchase, we guarantee to repair or replace it free of charge.

*Terms & conditions apply.
