JET.7M5A
Roller Cabinet, 7 Drawers, L 948 x H 421mm, 5 Modules Per Drawer, 0,46 m² Top
Facom JET.7M5A red tool cabinet with seven drawers on caster wheels, side handles, angled front, white background.

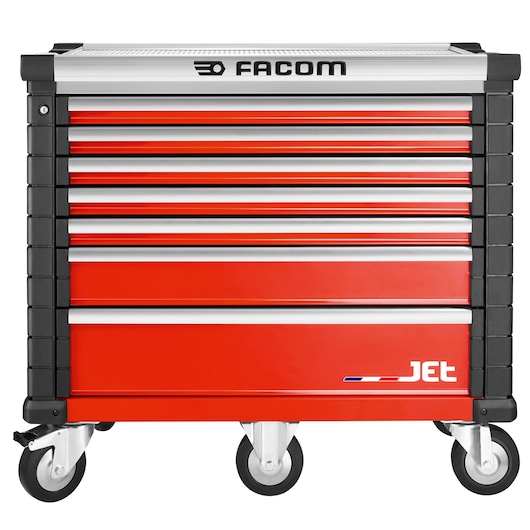

Facom JET.7M5A red rolling tool cabinet with seven drawers, front angle, white background.

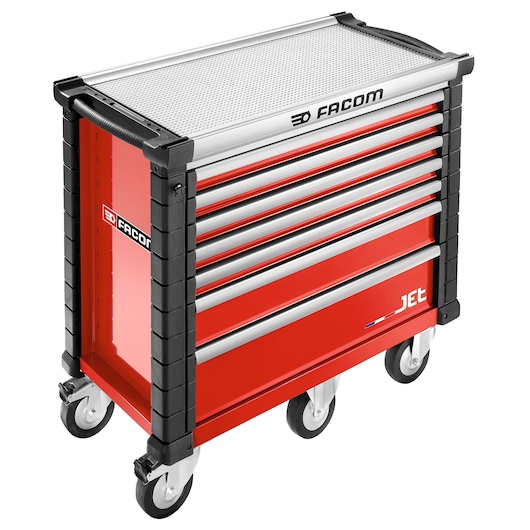

Facom JET.7M5A red rolling tool cabinet with seven drawers, metal top, side handle, and caster wheels, front angle.

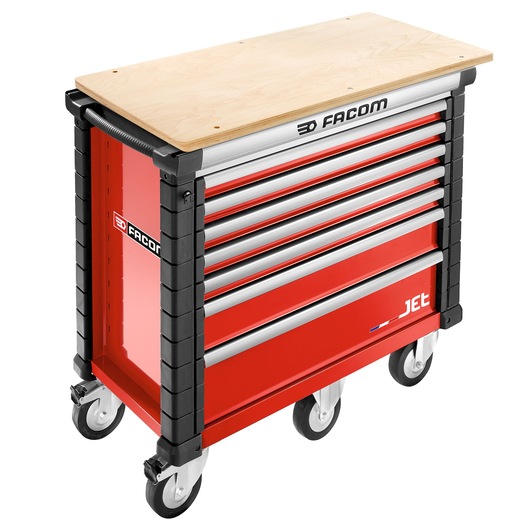

Facom JET.7M5A red tool cabinet with seven drawers, wood top, and wheels, front angle.

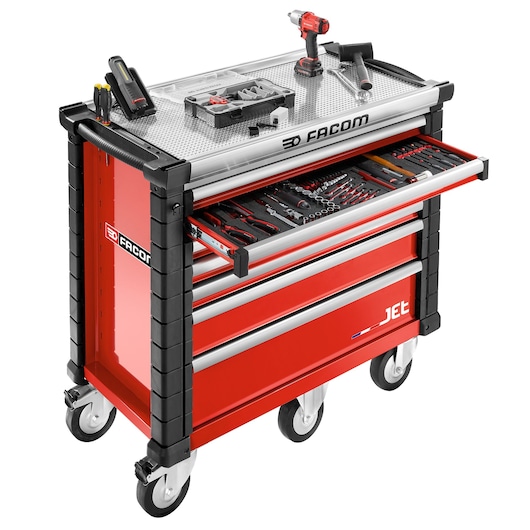

Facom JET.7M5A red tool trolley with open drawer showing assorted hand tools, photographed at front angle.

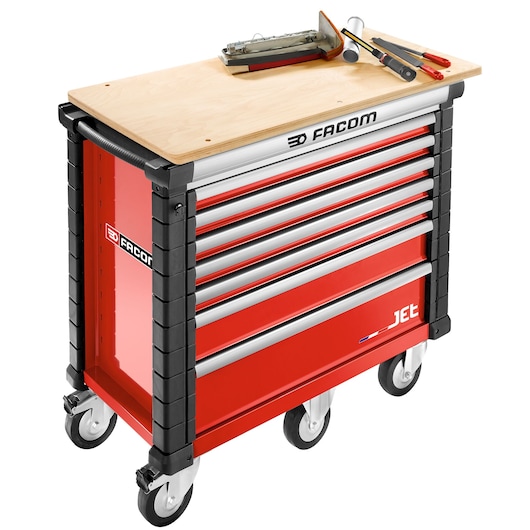

Facom JET.7M5A red tool chest with wooden top and tools, front angle, photography.

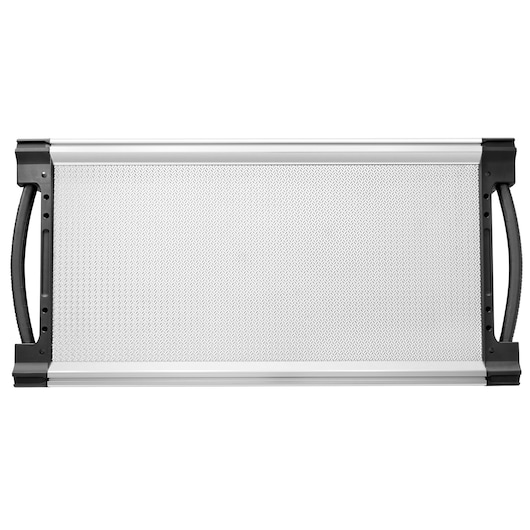

Facom JET.7M5A drawer front panel, silver textured metal with black handles, product photography, top view.

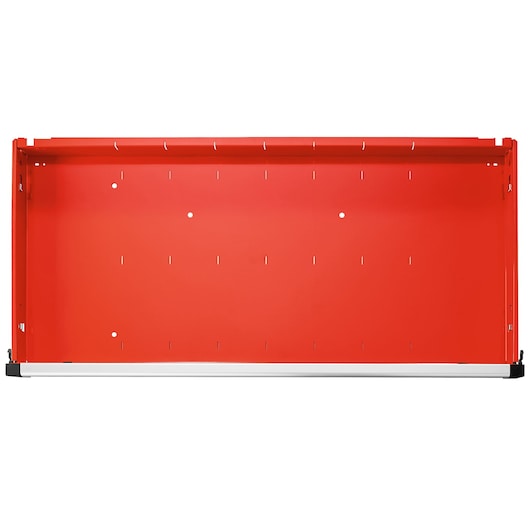

Facom JET.7M5A red metal tool cabinet front angle, with perforated back panel and white base.

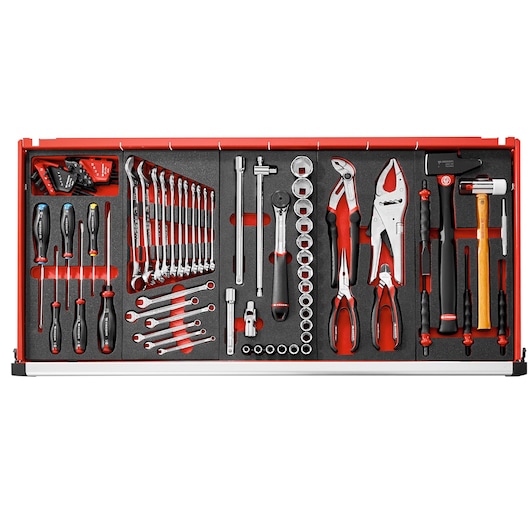

Facom JET.7M5A photography of a tool drawer set with wrenches, pliers, screwdrivers, sockets, and hammers, front angle.
JET.7M5A

Roller Cabinet, 7 Drawers, L 948 x H 421mm, 5 Modules Per Drawer, 0,46 m² Top

  • 7 drawer roller cabinet = 30 modules in 60 and 130 mm drawers
  • Total storage capacity: 255 litres
  • Usable drawer dimensions: L 948 x D 421 x H 60/130/200 mm
View more features

Additional Features

  • Supplied with 4 JET2.15 partitions for 60 mm drawers and 4 JET2.16 partitions for 130 mm drawers
  • Additional partitions can be purchased as an option if required
  • Worktop: Extra large work surface, usable area 987 x 461 mm, 0,46m². +25% vs JET
  • High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 1100 kg
  • Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
  • Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system
  • The installation of accessories is fast and secure
  • A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation
  • 5 drawers height 60 mm = 25 modules
  • Dedicated slots for 8 screwdrivers
  • Integrated ledges prevent tools from falling out while moving
  • Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion
  • The high-quality self-closing system ensures closure and increases safety
  • Central locking system with key lock, supplied with 2 keys, 1 of which is hinged
  • Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect
  • Manoeuvrability: Low starting effort, long life, high resistance to heavy loads
  • 6 wheels diameter 160 mm for very high performance, 4 swivel including 2 with brakes for an extra stability while working and 2 fixed
  • 360° function: Very easy to park
  • The trolley is delivered with the wheels already mounted
  • 1 drawer height 130 mm = 5 modules
  • Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated
  • Top chest available as optional unit for added volume and flexibility
  • 1 drawer height 200 mm
  • The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system
  • The 200 and 270 mm drawers can also be fitted with modules
  • Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 35/40/50 kg
  • The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use
  • Total load capacity of the drawers: 265 kg

Specifications

Body Metal Thickness [mm]
1
Can Additional Top Chest be Added?
No
Can Worksurface Receive Accessories?
No
Can Worksurface Receive a Vice?
No
Do Drawers Fully Open?
Yes
Drawer Capacity [Kg]
265
Drawer Depth [mm]
421
Drawer Height [mm]
60
Drawer Length [mm]
759
Drawers Total Weight Capacity [Kg]
265
Has 360° Rotation Capacity?
Yes
Has Anti-tip System? (One Drawer at a Time)
No
Has Bumper Effect?
Yes
Has Drawer Mat?
No
Has Drawer Separators?
No
Has Possibility of Accessorization?
No
Has Secure Closing System - Safety Hook?
Yes
Has Self-Closing Slides?
Yes
Has Tilting Handle?
No
Has Wheels with Brake?
Yes
Has Worktop with Integrated Handles?
Yes
Locking System
Central
Material of Box Corner Protectors
Hard Plastic
Material of Drawer Corner Protectors
Soft Plastic
Max. Worktop Load [Kg]
1000
Number of Drawers
7
Number of Fixed Wheels with Brake
1
Number of Fixed Wheels without Brake
1
Number of Handles
1
Number of Swiveling Wheels without Brake
0
Number of Wheels
4
Product Handle Type
Plastic
Product Height [mm]
971
Product Length [mm]
948
Product Weight [Kg]
106
Slides Material
Metal
Static Overall Weight Capacity [Kg]
1000
Surface Treatment
Chrome
Type of Lock
Key
Type of Side Handle
Plastic
Wheel Diameter [mm]
125
Worktop Material
Aluminum
