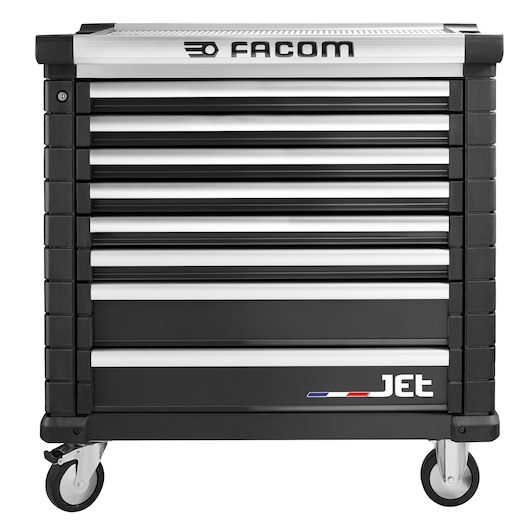

Roller Cabinet, 8 Drawers, L 759 x H 421 mm, 4 Modules Per Drawer, 0,37 m² Top

8 drawer roller cabinet = 32 modules in 60 and 130 mm drawers
6 drawers height 60 mm = 24 modules
2 drawers height 130 mm = 8 modules

View more features

Additional Features

The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system
The 200 and 270 mm drawers can also be fitted with modules
Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 20/30 kg
The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use
Total load capacity of the drawers: 210 kg
Total storage capacity: 200 litres
Usable drawer dimensions: L 759 x D 421 x H 60/130/200 mm
Supplied with 3 JET2.15 partitions for 60 mm drawers and 3 JET2.16 partitions for 130 mm drawers
Additional partitions can be purchased as an option if required
Worktop: Extra large work surface, usable area 797 x 461 mm, 0,37 m². +25% vs JET
High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 1000 kg
Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system
The installation of accessories is fast and secure
A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation
Dedicated slots for 8 screwdrivers
Integrated ledges prevent tools from falling out while moving
Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion
The high-quality self-closing system ensures closure and increases safety
Central locking system with key lock, supplied with 2 keys, 1 of which is hinged
Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect
Manoeuvrability: Low starting effort, long life, high resistance to heavy loads
4 wheels diameter 125 mm, 2 fixed and 2 swivel, each equipped with a brake for more stability when working at a standstill
The trolley is delivered with the wheels already mounted
Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated
Top chest available as optional unit for added volume and flexibility
Warranty: The FACOM JET series is manufactured in France to the highest specifications and standards
Each model is carefully tested to evaluate and validate its performance and comes with a five year warranty
The drawers are tested over 50,000 opening/closing cycles, i.e. 10 years of use

Specifications

100% Opening of Drawers	Yes
Body Metal Thickness [Metric]	1 mm
Drawers Total Weight Capacity [Metric]	210 Kg
Drawer Length [Metric]	759 mm
Drawer Capacity [Metric]	210 Kg
Number of Fixed Wheels without Brake	1
Additional Top Chest Can be Added	No
360' Rotation Capacity	Yes
Drawer Depth [Metric]	421 mm
Maximum Worktop Load [Metric]	1000 Kg
Number of Drawers	8
Color	Black 9005
Bumper Effect	Yes
Material of Box Corner Protectors	Hard Plastic
Number of Handles	1
Drawer Mat	No
Drawer Height [Metric]	60-130 mm
Number of Swiveling Wheels without Brake	1
Product Height [Metric]	1005 mm
Product Weight [Metric]	95 Kg
Number of Drawer Separators	32
Number of Fixed Wheels with Brake	1
Number of Wheels	4
Product Handle Type	Plastic
Anti-tip System - One Drawer At A Time	No
Product Length [Metric]	1004 mm
Drawer Separators	Yes
