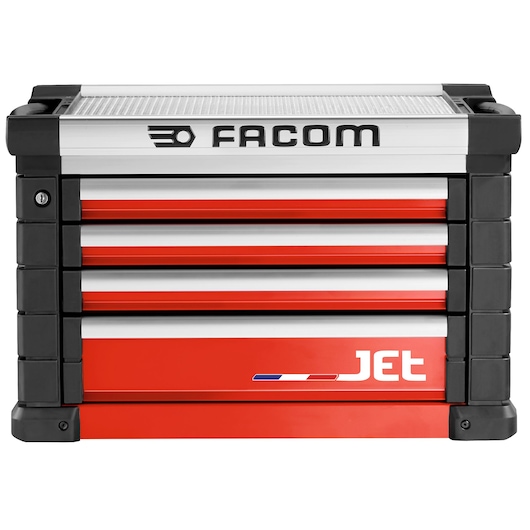

JET.C4M3A
Top chest 4 drawers, l 569 x h 421 mm, 3 modules per drawer

Additional Features

  • The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system
  • Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 20/25 kg
  • The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use
  • Total load capacity of the drawers: 85 kg
  • Total storage capacity: 75 litres
  • Usable drawer dimensions: L 569 x D 421 x H 60/130 mm
  • Can be fitted with the JET2.15 and JET2.16 removable partitions, not supplied
  • To be used alone or together with a JET.M3A rolling cabinet or a JET.CR4M3A mobile chest
  • Supplied with the link kit for easy and secured mounting of the assembly
  • Can be turned in a mobile version with the wheel set JET.C4MOBILEKIT with handle and 4 wheels
  • Worktop: Extra large work surface, usable area 605 x 461 mm, 0.28m²
  • High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 500 kg
  • Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
  • Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system
  • The installation of accessories is fast and secure
  • A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation
  • Dedicated slots for 8 screwdrivers
  • Integrated ledges prevent tools from falling out while moving
  • Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion
  • Central locking system with key lock, supplied with 2 keys, 1 of which is hinged
  • Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect
  • Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated
  • Warranty: The FACOM JET series is manufactured in France to the highest specifications and standards
  • Each model is carefully tested to evaluate and validate its performance and comes with a five year warranty
  • The drawers are tested over 50,000 opening/closing cycles, i.e. 10 years of use

Specifications

Drawer Separators
Yes
Material of Drawer Corner Protectors
Soft Plastic
Locking System
Auto Locking
Worktop with Integrated Handles
Yes
Type of Side Handle
Plastic
Possibility of Accessorization
Yes
Bumper Effect
Yes
Color
Red 3020
Material of Box Corner Protectors
Soft Plastic
Worksurface Can Receive a Vice
No
Number of Handles
1
Tilting Handle
No
360' Rotation Capacity
Yes
Additional Top Chest Can be Added
No
Maximum Worktop Load
900 Kg
Drawer Depth
421 mm
Number of Drawers
4
Drawer Height
60 mm
Drawer Mat
No
Product Height
480 mm
Product Weight
45 Kg
Number of Fixed Wheels with Brake
1
Number of Drawer Separators
12
Number of Wheels
0
Slides Material
Metal
Drawer Capacity
85 Kg
Drawer Length
569 mm
Drawers Total Weight Capacity
85 Kg
Number of Fixed Wheels without Brake
1
Self-Closing Slides
No
Type of Lock
Key
Available Accessories
Partitions/Drawer Separtors
100% Opening of Drawers
Yes
Body Metal Thickness
1 mm
Product Length
774 mm
Surface Treatment
Chrome
Static Overall Weight Capacity
85 Kg
Secure Closing System - Safety Hook
Yes
Worktop Material
Aluminum
Worksurface Can Receive Accessories
No
Anti-tip System - One Drawer At A Time
No

Support

Warranty

  • 5 Year Guarantee*

If this product becomes defective due to faulty materials or workmanship within 5 years from the date of purchase, we guarantee to repair or replace it free of charge.

*Terms & conditions apply.
