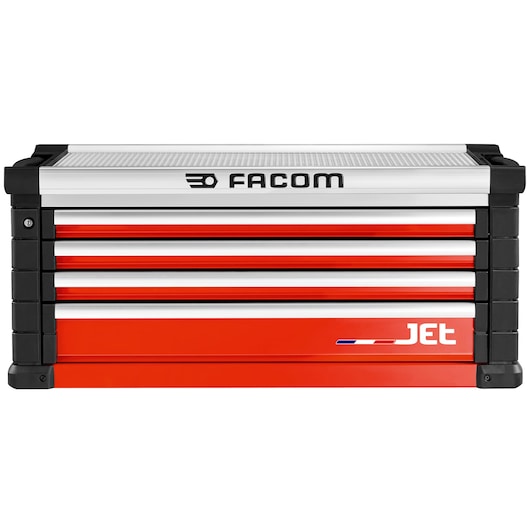

Top Chest, 4 Drawers, L 948 x H 421 mm, 5 Modules Per Drawer

4 drawers chest = 20 modules distributed in the 60 and 130 mm drawers
Can be fitted with the JET2.15 and JET2.16 removable partitions, not supplied
To be used alone or together with a JET.M5A rolling cabinet

View more features

Additional Features

Supplied with the link kit for easy and secured mounting of the assembly
Can be turned in a mobile version with the wheel set JET.C4MOBILEKIT with handle and 4 wheels
Worktop: Extra large work surface, usable area 987 x 461 mm. 0,46m²
High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 700 kg
Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system
The installation of accessories is fast and secure
A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation
3 drawers height 60 mm = 15 modules
Dedicated slots for 8 screwdrivers
Integrated ledges prevent tools from falling out while moving
Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion
Central locking system with key lock, supplied with 2 keys, 1 of which is hinged
Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect
Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated
1 drawer height 130 mm = 5 modules
The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system
Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 35/40 kg
The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use
Total load capacity of the drawers: 145 kg
Total storage capacity: 125 litres
Usable drawer dimensions: L 948 x D 421 x H 60/130 mm

Specifications

Body Metal Thickness [mm]	1
Can Additional Top Chest be Added?	Yes
Can Worksurface Receive Accessories?	No
Can Worksurface Receive a Vice?	No
Do Drawers Fully Open?	Yes
Drawer Capacity [Kg]	145
Drawer Depth [mm]	421
Drawer Length [mm]	948
Drawers Total Weight Capacity [Kg]	145
Has 360° Rotation Capacity?	No
Has Anti-tip System? (One Drawer at a Time)	No
Has Bumper Effect?	Yes
Has Drawer Mat?	No
Has Drawer Separators?	Yes
Has Possibility of Accessorization?	Yes
Has Secure Closing System - Safety Hook?	Yes
Has Self-Closing Slides?	Yes
Has Tilting Handle?	No
Has Wheels with Brake?	Yes
Has Worktop with Integrated Handles?	Yes
Locking System	Central
Material of Box Corner Protectors	Hard Plastic
Material of Drawer Corner Protectors	Soft Plastic
Max. Worktop Load [Kg]	700
Number of Drawers	4
Number of Fixed Wheels with Brake	1
Number of Fixed Wheels without Brake	1
Number of Handles	2
Number of Wheels	0
Product Height [mm]	500
Product Length [mm]	1194
Product Weight [Kg]	60
Slides Material	Metal
Static Overall Weight Capacity [Kg]	700
Surface Treatment	Chrome
Type of Lock	Key
Type of Side Handle	Plastic
Wheel Diameter [mm]	125
Worktop Material	Aluminum
