9mm - 19mm Heat Shrink Sheath With Metal "D" Ring Safety Lock System
SLS.G19
9mm - 19mm Heat Shrink Sheath With Metal "D" Ring Safety Lock System

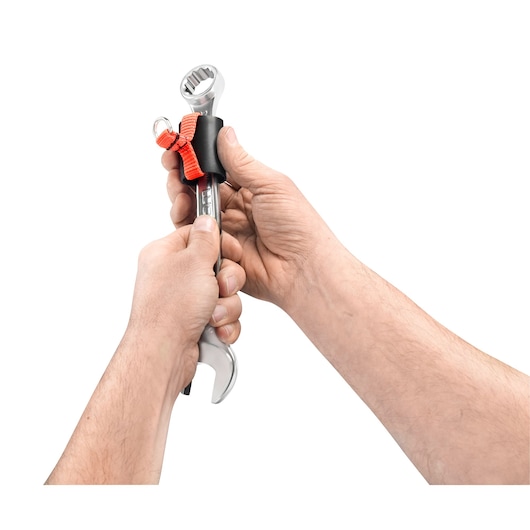

- Shrink tubing fitted with a strap and a metal "D" ring - SLS. This solution allows you to add an attachment point to all types of products and make them compatible with lanyards and carabiners from the facom sls range. Examples: special tools, pens, sprays etc.The strap surrounds the shrink tubing for strength and maximum security for all
- Fabric resistant to common solvents
- Sheath equipped with an adhesive which becomes liquid with the heat during the retraction of the sheath. optimum temperature of withdrawal: between 150 and 300 ° depending on the thickness and diameter of the sheath.Excellent adhesion on most substrates: crude steel, chrome or phosphate, aluminum, wood, plastic, ...Precautions: - Clean and degrease the product that will receive the shrink tubing. - Select the correct diameter of shrink-hose according to the allocation table. - Identify a location where the sheath will not harm ergonomics. If possible, choose a location where the sheath can not escape once retracted.- Respect the maximum weight recommended. - Heat the sheath about 3cm away with a standard heat gun Facom E.2015. Be careful not to burn the strap.- Allow to cool for 5 minutes to obtain optimum adhesion of the glue. - Check the bond. - Check the equipment periodically
Additional Features
- 9 to 19mm
Specifications
|
Has CE Mark?
|
Yes
|
|
Is it a Set?
|
No
|
|
Maximum Diameter [mm]
|
19
|
|
Number Of Pieces
|
1
|
|
Product Diameter [mm]
|
30
|
|
Product Height [mm]
|
50
|
|
Product Length [mm]
|
36
|
|
Product Weight Gross [Kg]
|
2.2
|
|
Product Weight [Kg]
|
0.03
|
|
Product Width [mm]
|
30
|
